Y5 5W-10W RGB moving head laser.
特点 Features
1.作为首家实现动画摇头激光批量化生产的厂家，我们见证这一产品成为市场新宠。
2.区别于市场上简单的部件拼装，我们自主研发摇头电路、程序，精心雕琢结构外观，每一处细节都凝聚着智慧与匠心。
3.这款激光灯以小巧的体积、轻盈的重量，释放出锐利光线，效果变幻无穷，凭借卓越品质与独特魅力，深受客户的喜爱与信赖。
Different from the simple assembly of parts on the market, we independently develop shaking circuits and programs, and carefully carve the structure and appearance. Every detail embodies wisdom and ingenuity.
This laser light has a small size and light weight, releases sharp light, and the effect is infinite. With its excellent quality and unique charm, it is deeply loved and trusted by customers.
产品参数
◎Y5-RGB10
激光配置：R635-3W/G525-3W/B450-4W
◎Y5-W5000
激光配置：R635-1.2W/G525-1.3W/B450-3W
◎工作电压：AC100-240V 50/60Hz; 额定功率：≤120W
◎激光振镜: LF30K扫描振镜，光学角度max±25°；输入信号±5V；线性失真<2%
◎X轴：540度 Y轴：270度
◎激光调制：模拟调制
◎光束直径及发散角：3*6.5mm：1.5mrad
◎控制模式：音控、自走、主从机、DMX512、ILDA
◎控制接口：三芯DMX512接口、ILDA RJ45接口
◎DMX512通道：14CH/16CH/40CH/42CH
◎DMX特效: 单图案模式，可分别断笔、频闪、旋转、移动、翻滚、分图、渐绘、换色、 改变大小等功能
◎使用须知: 环境温度控制在0~35℃，干燥少尘环境可减少激光功率衰减，延长灯具寿命
◎散热模式：智能风冷散热系统
◎适合场所：迪吧、酒吧、夜总会、演唱会、广告推广等
◎包装尺寸：36*33*52CM
◎净/毛重：8.5/11kg
Product parameter：
◎Y5-RGB10：R635-3W/G525-3W/B450-4W
◎Y5-W5000：R635-1.2W/G525-1.3W/B450-3W
◎Rated voltage：AC100-240V 50/60Hz;
◎Power consumption：≤120W
◎Scanner: 30Kpps@ILDA 8° , Max Scan angle 50°
◎X axis 540°rotation, Y axis 270°rotation
◎Laser modulation: analog
◎Beam diameter and divergence: 3*6.5mm;1.5mrad
◎Control mode：music(black out)/ automatic/master-slave/DMX512（14CH/16CH/40CH/42CH）/ILDA/user
◎Control interface:3 pin DMX512, RJ45 ILDA
◎DMX effect: Single pattern mode,and with the function of unique blanking,strobe,rotation, movement, billowing, zoom,write in,speed and color etc.
◎Operating requirement: dry, less dust, 0~35℃(environmental temperature),will reduce the attenuation of the diode and extend the life of the light.
◎Heat dissipation mode: intelligent air cooling cooling system
◎Application:disco, club, concert, medium indoor venue, festival
◎Carton size：36*33*52CM
◎N.W./G.W：8.5/11kg

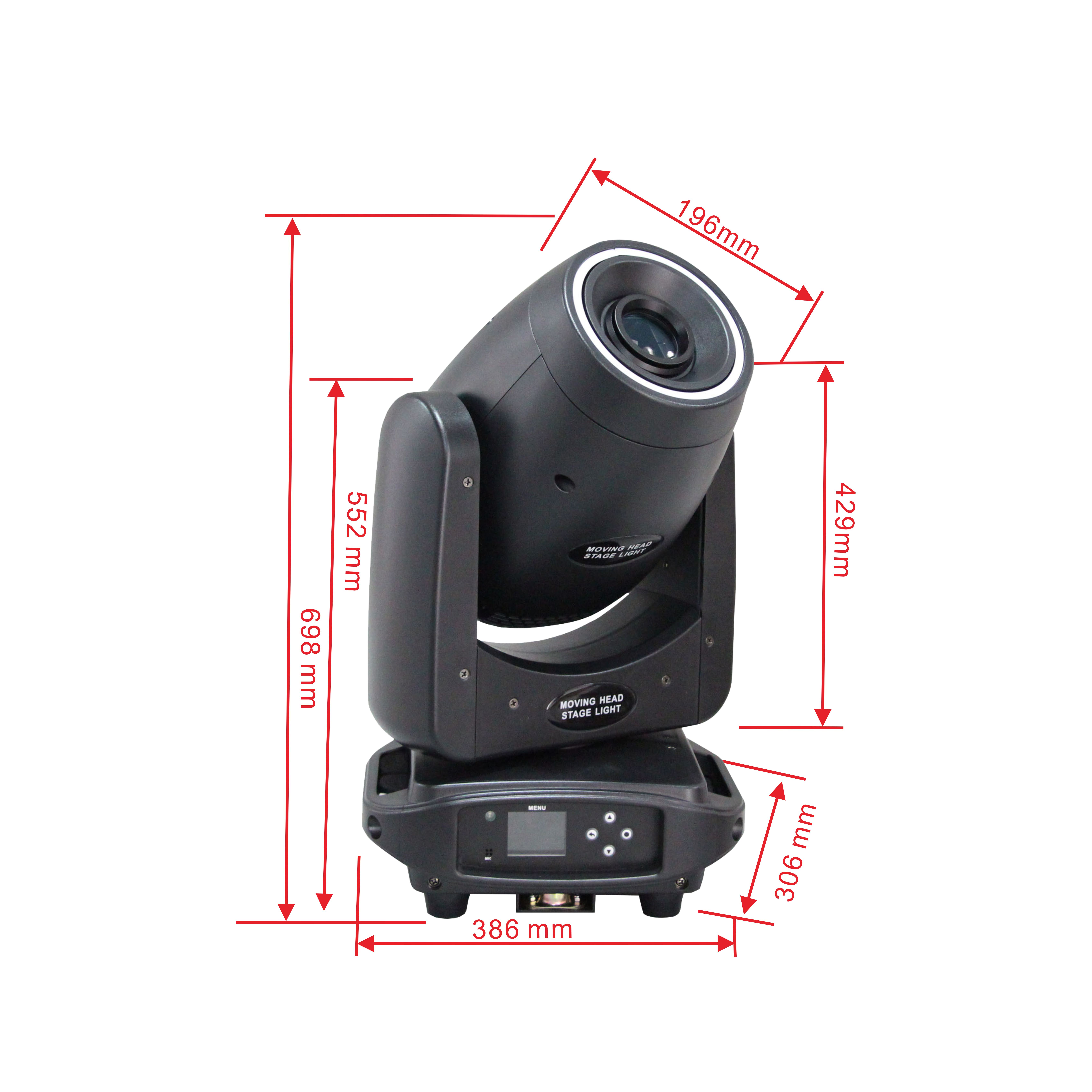

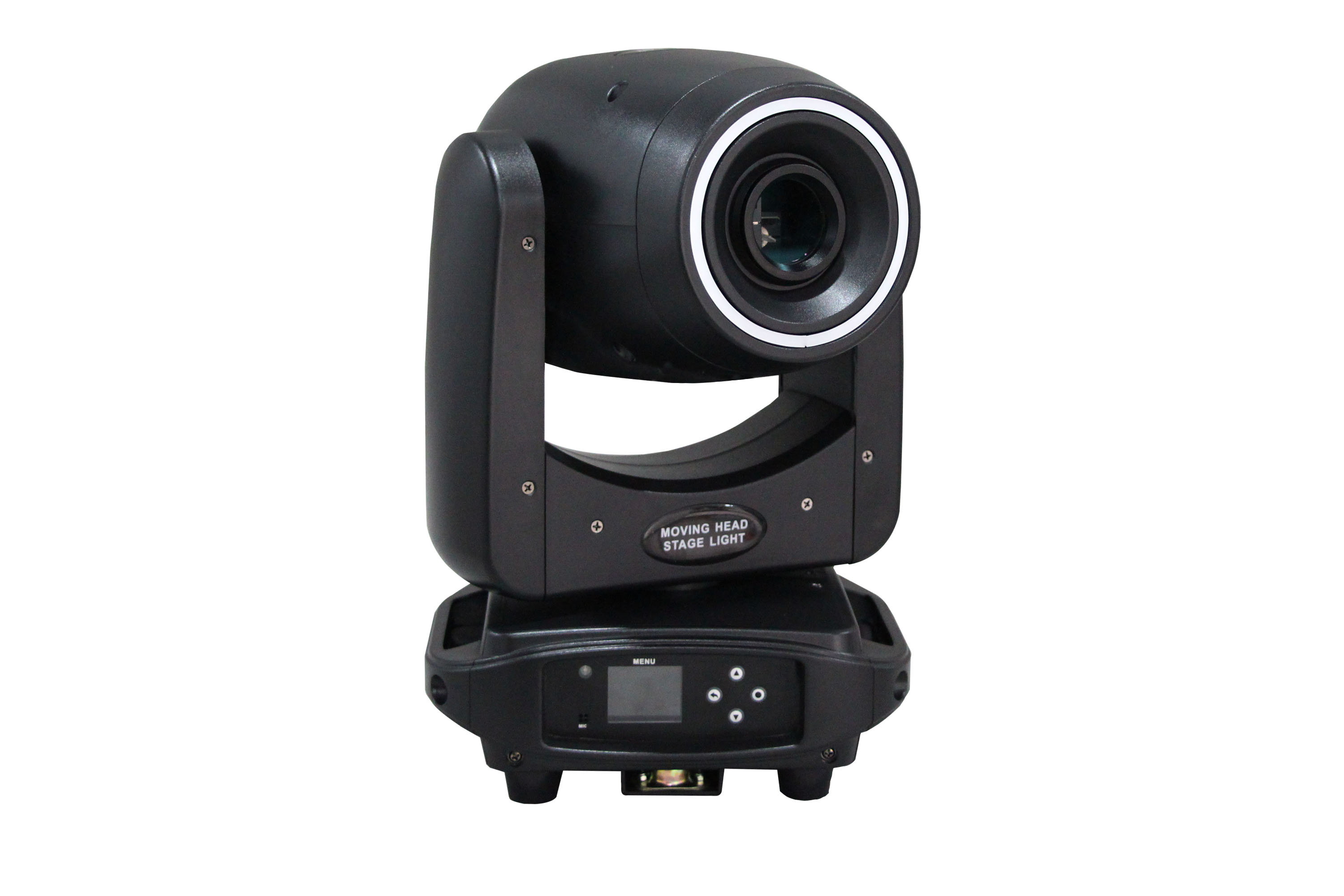

产品图
